Bosun app and Lighthouse

3 min read 579 words Updated 4 October 2026

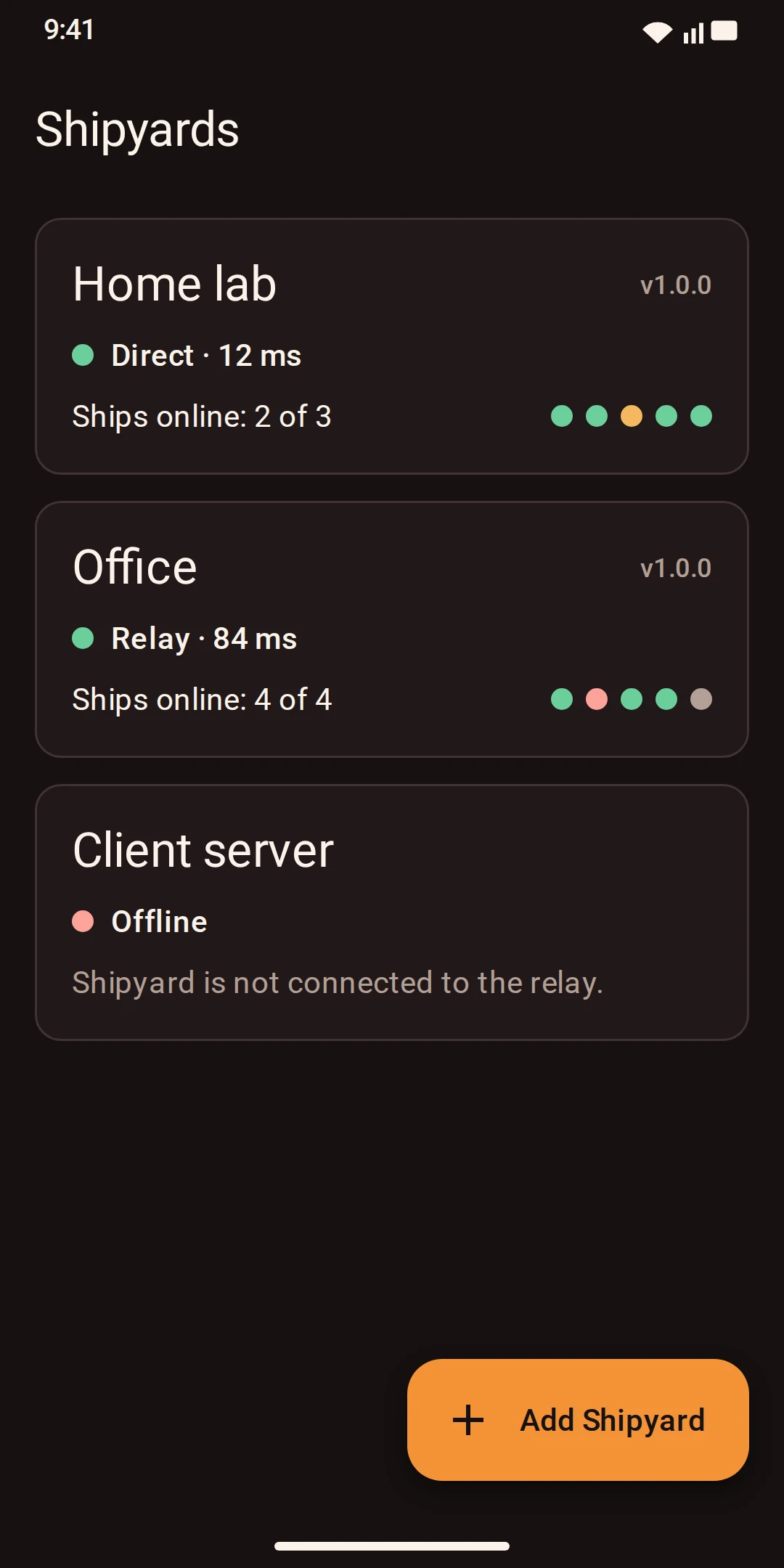

Bosun is the Android app for Shipyard. It keeps a list of your Shipyards — home lab, office, a client's server — and shows for each one whether it is reachable, its version, the latest runs and which ships are online.

A Shipyard usually sits on a private network. Bosun reaches it two ways:

Bosun ──HTTPS──▶ Lighthouse (public host) ◀──outbound TLS── Shipyard (private network)
Bosun ──────────────────────────────────────────────────▶ Shipyard (same network)

• Direct — on the same Wi-Fi or VPN, Bosun talks to Shipyard's own address.
• Lighthouse — a small relay on any public server. Shipyard connects out to it, so you open no ports and need no static IP. Bosun tries direct first and falls back to the relay.

Every request is encrypted and authenticated end to end with a key that only the phone and the Shipyard hold. The relay forwards bytes it cannot read and cannot forge answers. A replayed or delayed request is refused.

1. Enable phones on the Shipyard

runtime:
  api_token_env: SHIPYARD_API_TOKEN
remote:
  name: Home lab
  direct_url: http://192.168.1.10:8080      # address phones use on your network
  relay: https://lighthouse.example.com     # optional, see below
  relay_token_env: SHIPYARD_RELAY_TOKEN

For direct access, Shipyard must listen on the network address (listen: 0.0.0.0:8080), which requires the API token. Set direct_url, relay or both, then restart.

2. Pair the phone

1. In the console open Docks → Phones → Pair phone, enter a name and click Show pairing code.
2. In Bosun tap Add Shipyard and scan the code. Bosun stores the key encrypted in the phone's keystore and tests the connection.

The code contains the phone's key and is shown once. Pair every phone separately; Revoke in the console cuts a phone off immediately.

3. Run a Lighthouse (optional)

Any small public server works — a VPS, a cloud VM, a Raspberry Pi with a public IP. One Lighthouse serves many Shipyards.

sudo install -m 0755 lighthouse-linux-amd64 /usr/local/bin/lighthouse
sudo install -d -m 0700 /etc/lighthouse
echo "LIGHTHOUSE_TOKEN=$(openssl rand -hex 32)" | sudo tee /etc/lighthouse/lighthouse.env >/dev/null
sudo chmod 0600 /etc/lighthouse/lighthouse.env

/etc/systemd/system/lighthouse.service:

[Unit]
Description=Lighthouse relay
Wants=network-online.target
After=network-online.target

[Service]
DynamicUser=yes
StateDirectory=lighthouse
EnvironmentFile=/etc/lighthouse/lighthouse.env
ExecStart=/usr/local/bin/lighthouse -autocert lighthouse.example.com -state /var/lib/lighthouse
AmbientCapabilities=CAP_NET_BIND_SERVICE
Restart=always
NoNewPrivileges=true
ProtectSystem=strict

[Install]
WantedBy=multi-user.target

sudo systemctl enable --now lighthouse
curl https://lighthouse.example.com/healthz

Point the DNS name at the server and open TCP 443. -autocert gets a Let's Encrypt certificate automatically; use -tls-cert and -tls-key for your own. Behind a TLS-terminating proxy that speaks HTTP/2 to the backend, run with -plain-http.

On each Shipyard, put the same token into the variable named by relay_token_env (here SHIPYARD_RELAY_TOKEN). The Shipyard log shows relay tunnel up when it is connected. The first Shipyard that registers a yard ID owns it on that Lighthouse.

Lighthouse options

lighthouse [-listen :443] (-autocert DOMAINS | -tls-cert FILE -tls-key FILE | -plain-http) [-state DIR]

LIGHTHOUSE_TOKEN must be set.

Get Bosun

Download for AndroidBosun APK

The APK is on Downloads. Install it with adb install bosun.apk or open it on the phone and allow installation from that source. Bosun needs Android 8.0 or newer.
